| 브랜드 이름: | SDEC SDEC |
| 모델 번호: | SC4H160D2 |
| 모크: | 1대 pc |
| 가격: | Price:Negotiable |
| 지불 조건: | Western Union, T/T, D/P, L/C. |
| 공급 능력: | 200 PC / 달 |
SDEC SDEC SC4H160D2 diesel generator sets features:
Our factory provides comprehensive solution for prime/standby power generation from 2kva to 4000kva.We designing and installing power generation solution to our clients.Our diesel generators are widely use in mines,communications,army,ports,highway,railway,hotels,shopping mall and so on.
We are manufacturer!!!
Diesel generator power range from 8kw-2000kw
Gas generator power range from 10kw-1000kw
Engine brand :Doosan,weichai ,yuchai ,ricardo and so on .
Alternator brand :Stamford,Marathon,Lerory Somer and so on .
Control module:Smartgen,CoMap,Deepsea and so on
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd | ||||||
| Model | MB-S100 | ||||||
| Prime Powder | 95KW/118.75KVA | ||||||
| Standby Powder | 105KW/131.25KVA | ||||||
| Power Factor | COSΦ=0.8(lagging) | ||||||
| Max. Output current | 180 A | ||||||
| Genset Weight | 1880KG | ||||||
| Length x Width x Height (Engine) (mm) | 2650×890×1350 | ||||||
| Voltage | 400/230 | ||||||
| Frequency | 50HZ | ||||||
| Engine Specification | |||||||
| Brand | SDEC | ||||||
| Model | SC4H160D2 | ||||||
| Rated speed | 1500rpm | ||||||
| Prime Powder | 105KW/131.25KVA | ||||||
| Standby Powder | 116KW/145KVA | ||||||
| Fuel Consumption | <=198g/KW.H | ||||||
| Lube oil capacity | 15 L | ||||||
| Bore (mm) x Stroke (mm) | 105×124 mm | ||||||
| Compression ratio | 17:1 | ||||||
| Displacement (litre) | 4.3L | ||||||
| Coolant capacity, L | / | ||||||
| Configuration | 4 in line ,four-stroke, Turbocharged, Charge Air Cooled | ||||||
| Cooling | Liquid Cooled | ||||||
| Governor type | Electronic | ||||||
| Starting voltage | 24 Volts DC | ||||||
| Filtration system | Air Filter/Fuel Filter/Oil Filter | ||||||
| Alternator Specification | |||||||
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd | ||||||
| Model | MBC27C | ||||||
| Voltage Regulator | AVR | ||||||
| Voltage adjust range | ±1% | ||||||
| Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire | ||||||
| Steady-state Frequency | 5% | ||||||
| No-load Voltage Adjust Range | >=95%-105% | ||||||
| Insulation Class | H | ||||||
| IP Protection | 22 | ||||||
| Excitation Type | Blushless | ||||||
About our factory
Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai
Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

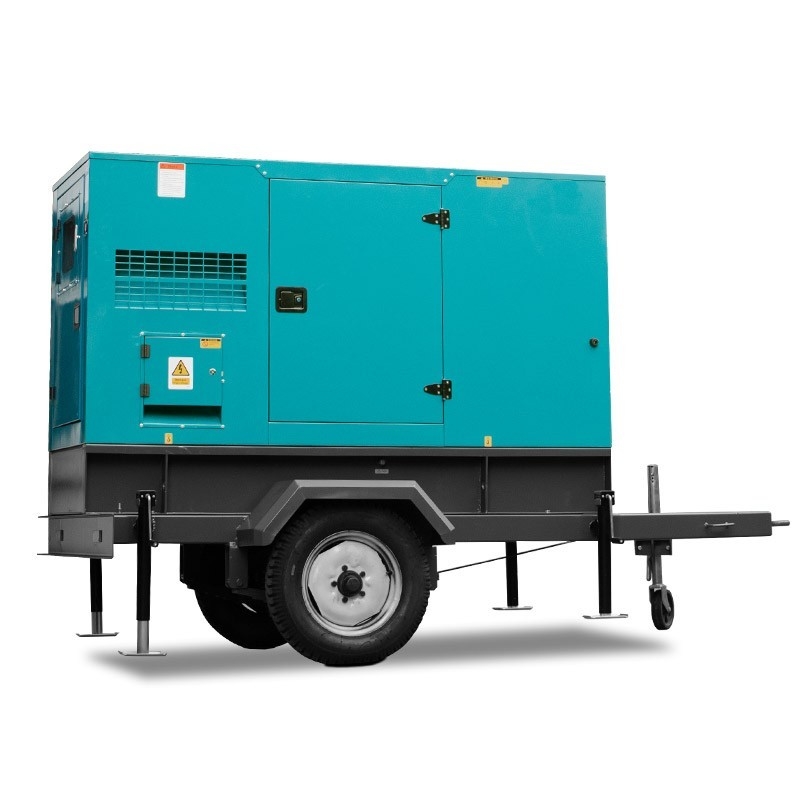

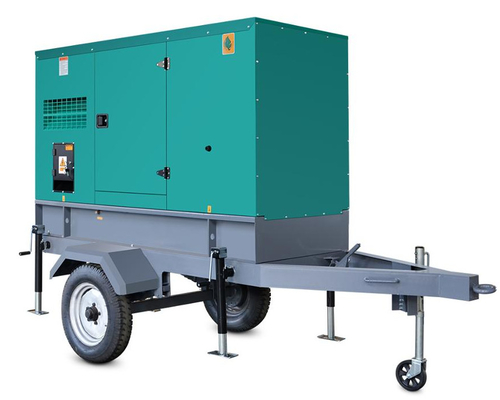

Trailer Diesel Generator Small Portable Mobile Trailer Type Soundproof 50kva Diesel Generator With SDEC Engine SDEC
Mingbang POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.
More details for diesel generator sets ,please contact us any time
Your further inquiry will be welcome!!
